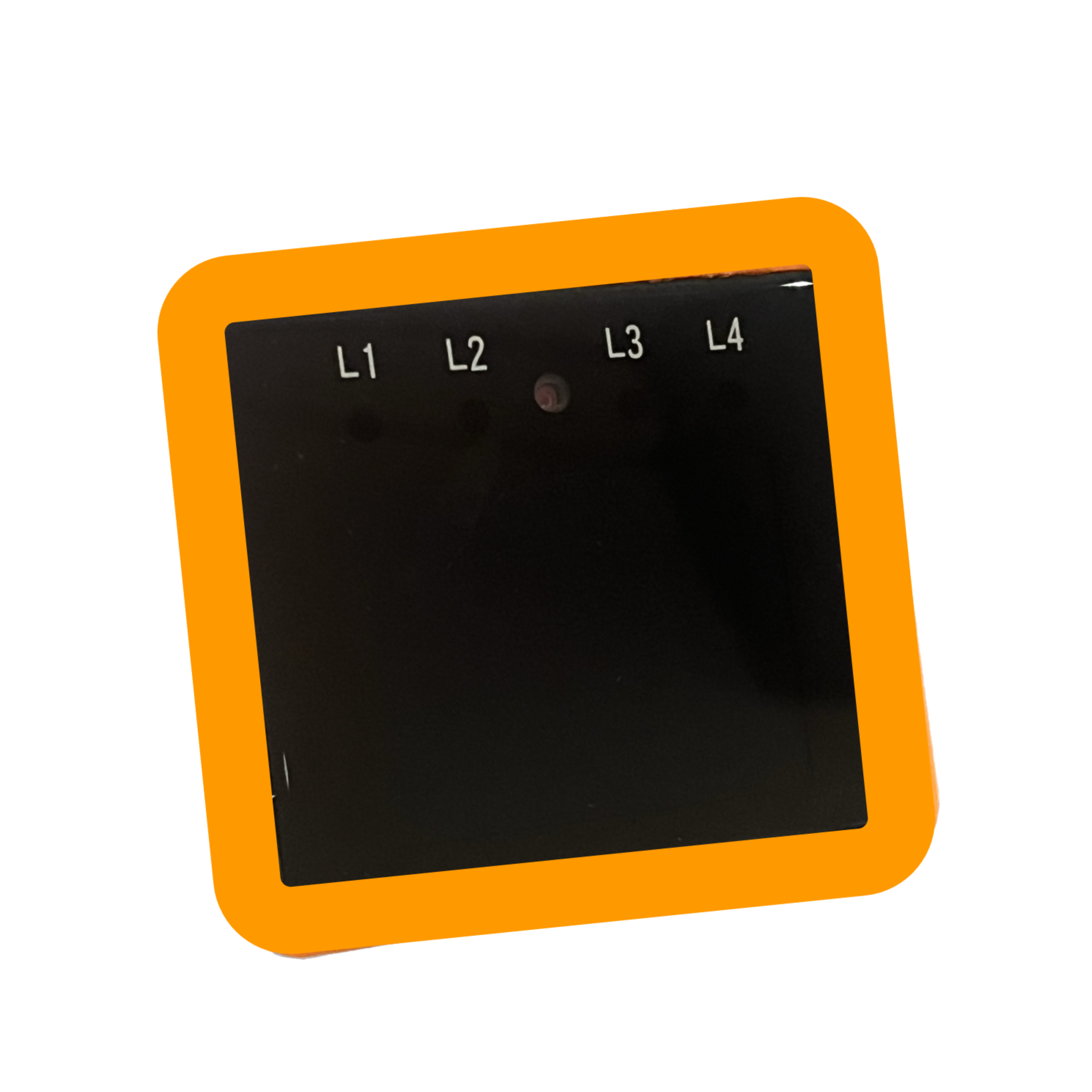

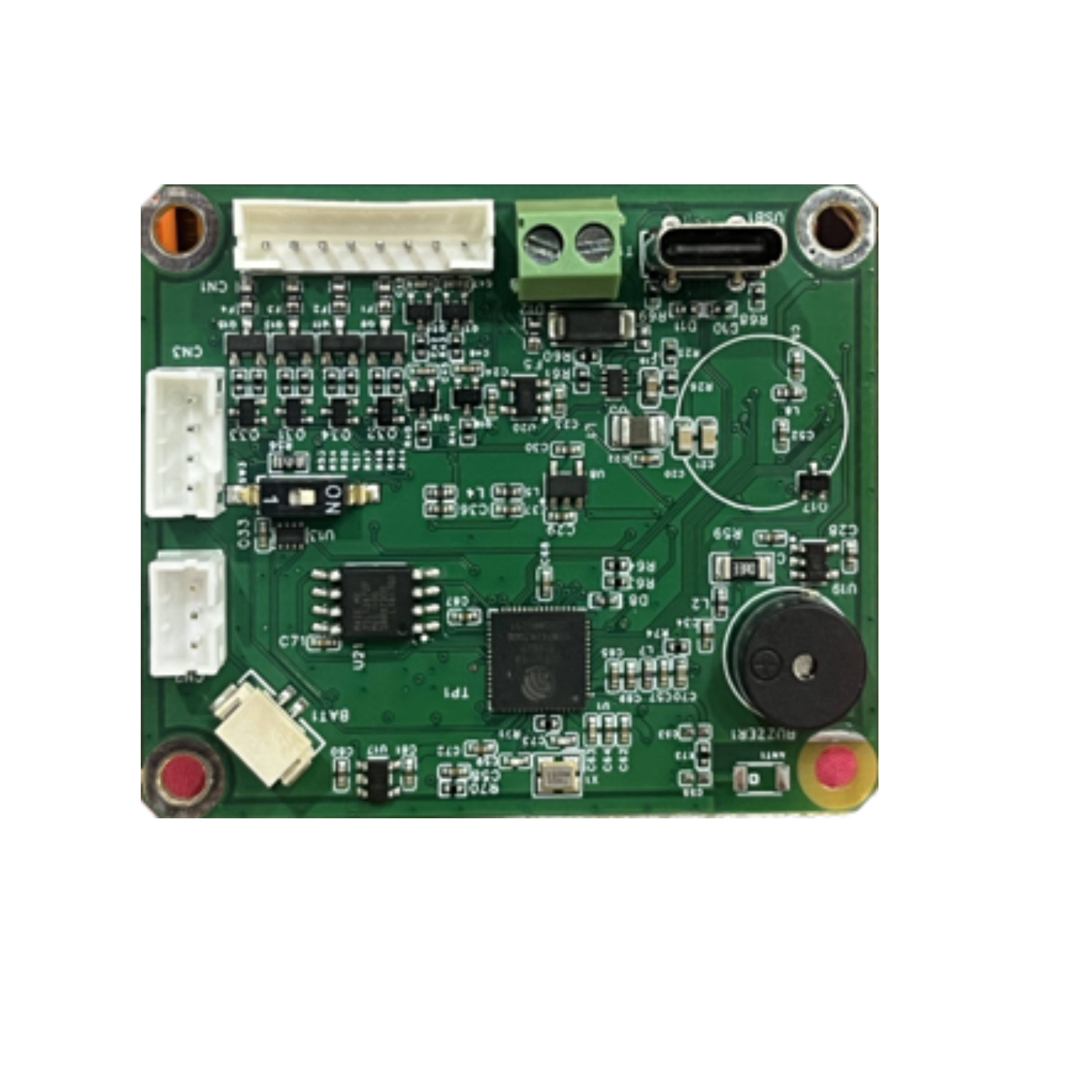

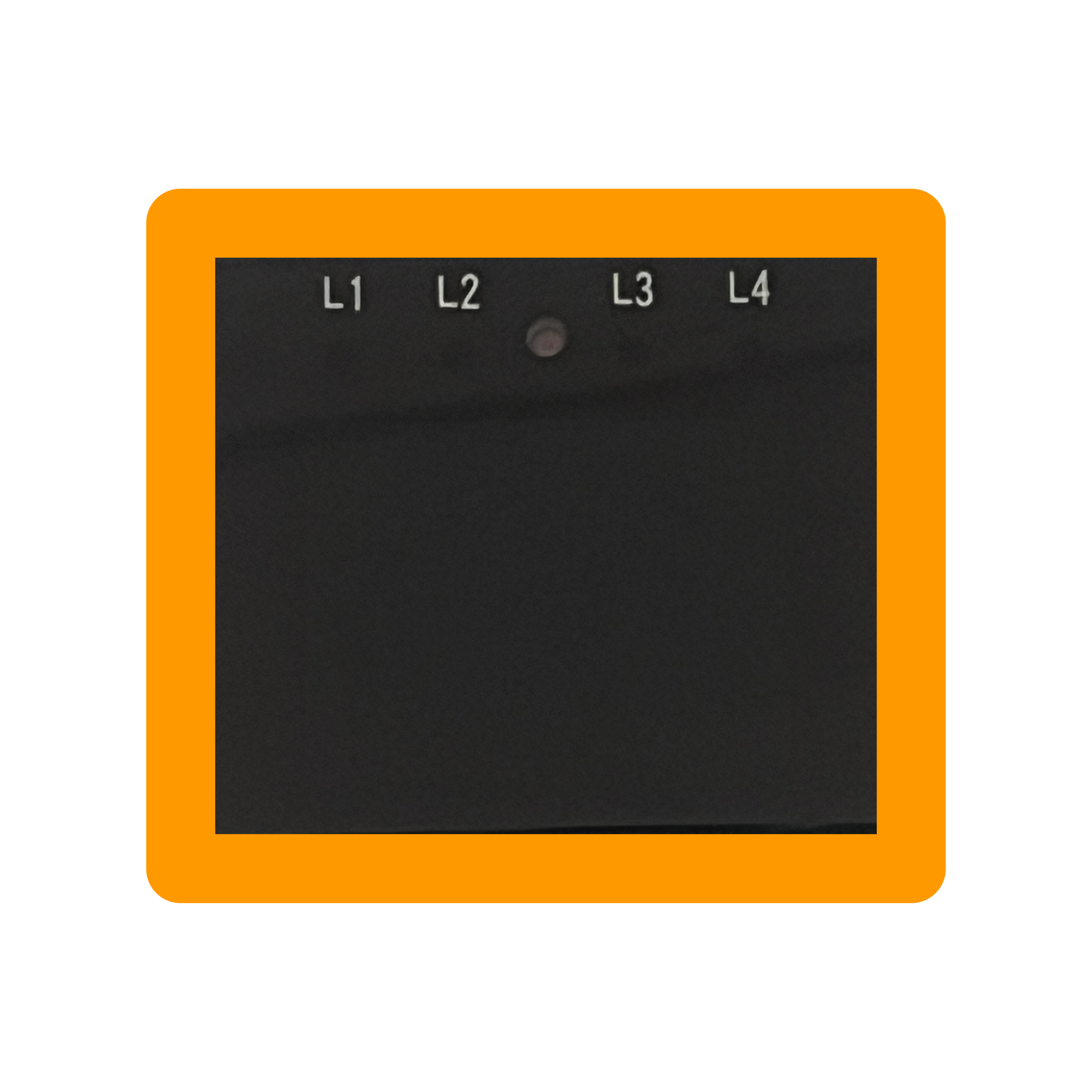

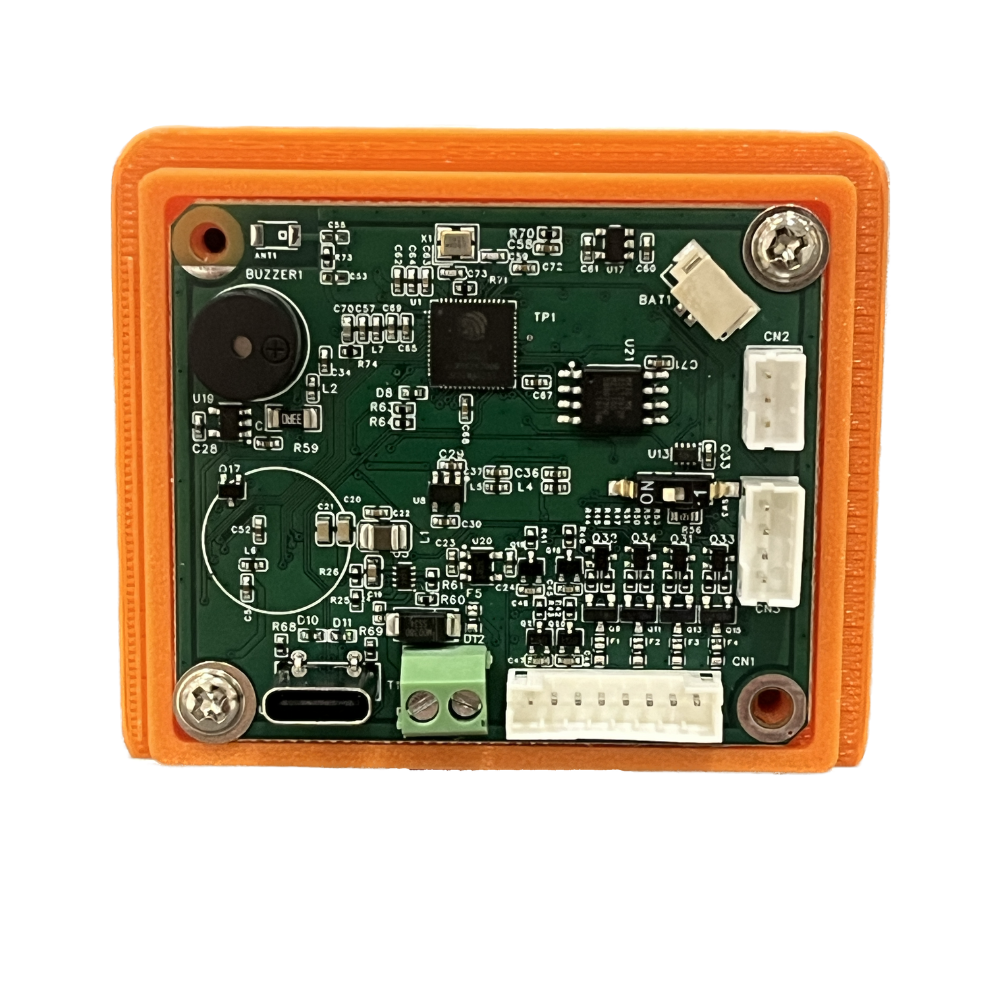

PK100-ES3 is FusionTech’s innovation ultra-compact embedded kit is equipped with a Dual-Core Xtensa® 32-bit LX7 Microprocessor that includes 8MB PSRAM, 16MB NOR FLASH. PK100-ES3 consists with 2” Display with PCAP Touch and 2MP Camera for Intelligent face recognition solution that apply in access control system and authority management. PK100-ES3 also includes rich communicate interface: 1x COM Port, 1x USB Type C Debug Port, 4x programmable LEDs, 4x DI, 4x DO and support 1x ADC with 2-channel, 12-bit. Type C Debug port provides you a higher speed for data transmission. This design enhances the measurement precision, multifunctionality, and system reliability efficiently. We use FreeRTOS with LVGL rich library to design attractive and user-friendly interface for effortlessly and intuitive use. This ultra small and delicate embedded kit is an ideal choice for Industrial IoT and automation, likes PLC, controller cabinet, M2M gateway.
| PK100-ES3 | ||
|---|---|---|
| System | ||
| Processor | Xtensa® Dual-core 32-bit LX7 Microprocessor, 240MHz | |
| RAM | 8MB PSRAM | |
| Storage | 16MB NOR Flash | |
| Display | 2" LCD, 240x320 pixels | |
| Touch | PCAP Touch Screen | |
| Camera | 1x 2MP OV2640 | |
| I/O interface | ||
| USB Port | 1x USB Type C Debug port | |
| COM Port | 1x RS485 w/ Terminal register for ON/OFF | |
| LED | 4x programmable LED, Blue color (SMD Type) | |
| DI | 24V, 4x Digital INPUT@20mA | |
| DO | 24V, 4x Digital OUTPUT, Max 30V/each | |
| ADC | 2-channel, 12-bit, max 10V | |
| RTC | Support a CR2032 Battery (included) | |
| Others | ||
| Power Input | 24V via 2 Terminal Block phoenix contact | |
| Form Factor | 54.5mm x 45.8mm | |
| Operating Temperature | -10°C ~ 70°C | |
| Operating System | FreeRTOS | |
