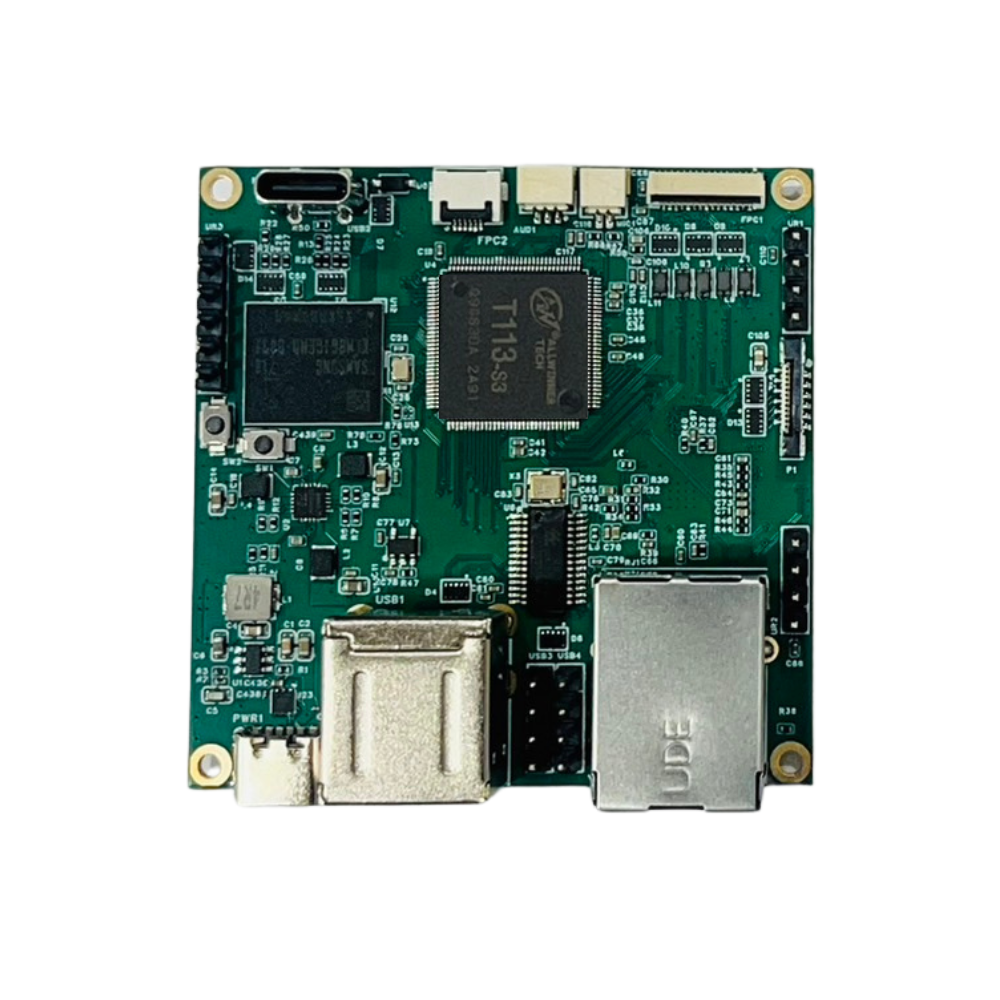

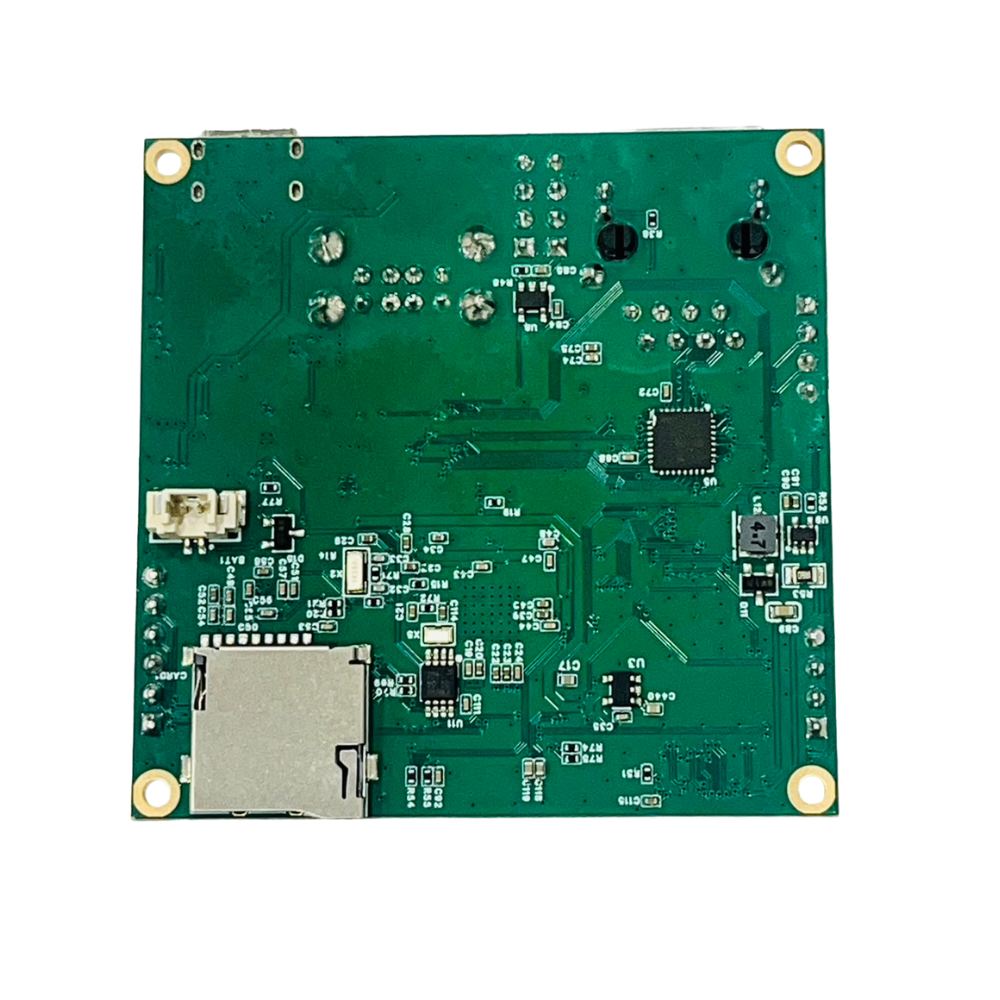

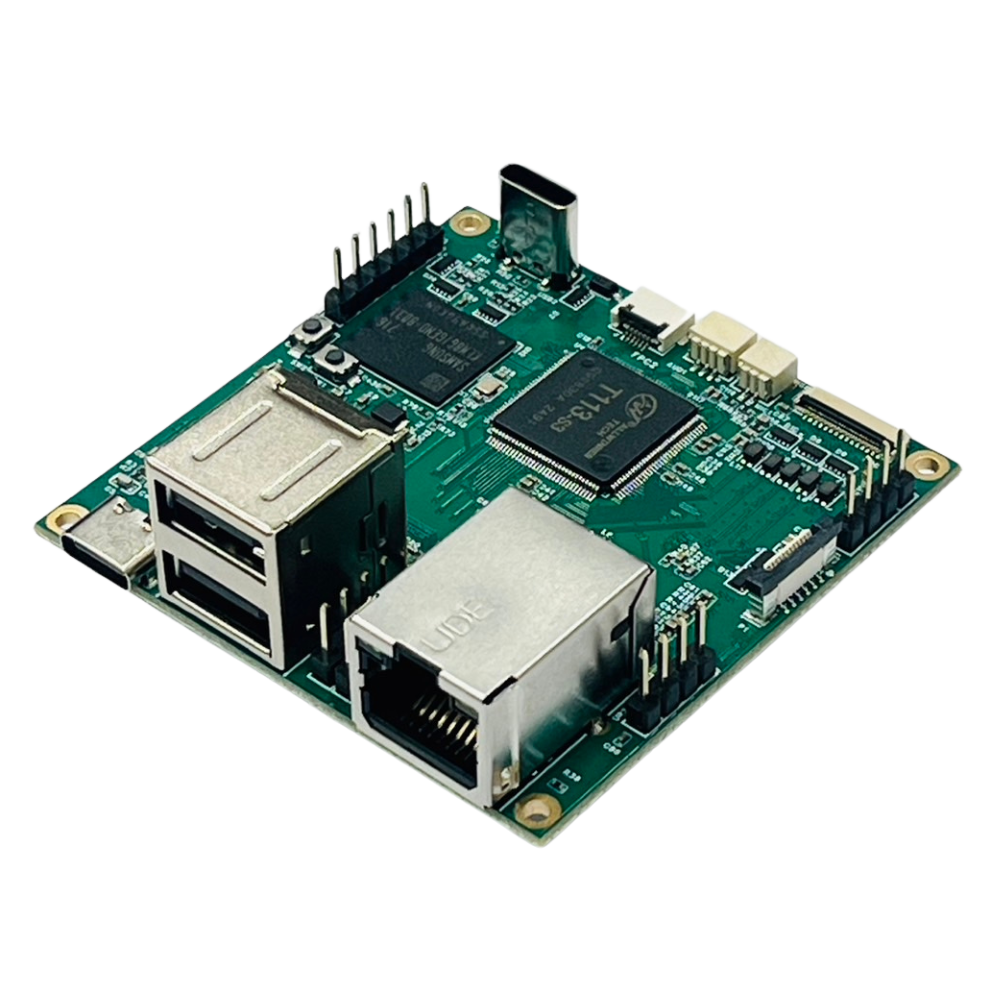

MBM-T113, powered by Allwinner dual-core ARM Cortex-A7 processor and designed in a Mobile-ITX form factor, delivers exceptional performance in its compact 60x60mm size, making it perfect for space-constrained applications. Its built-in HiFi4 DSP ensures smooth media playback, making it an excellent choice for smart home devices, retail kiosks, and interactive displays. With its support for MIPI-DSI (1920x1200) and I2C touch interfaces, MBM-T113 is tailored for touchscreen applications such as industrial HMIs, vending kiosks, and medical terminals. Its multimedia capabilities, including Line-out, MIC-in, and GPU-accelerated 1080p video decoding, are perfect for systems requiring high-quality audio-visual performance. Extensive connectivity options: 4x USB, USB Type-C for debugging, and multiple UARTs, making it a versatile platform for integrating peripherals in industrial automation or IoT gateways. The GPIO and expandable interfaces support custom sensors and actuators, ensuring flexibility for diverse use cases. With Linux OS support and GUI libraries like LVGL, Qt, and GTK+, this board accelerates development and deployment for innovative embedded solutions.
| Processor | Dual-core ARM Cortex-A7 @ 1.2GHz |
| RAM | On-chip Memory, 128MB DDR3 |
| Storage | 8GB eMMC flash onboard and 1x Micro SD slot |
| Display | Support 1x MIPI DSI w/1080p60 |
| Touch | Support via I2C Touch |
| Ethernet | 10/100Mbps |
| Ethernet | 1x RJ45 w/ LED indicator |
| USB Port | 4x USB 2.0 HS ( 2xType A, 2x header), 1 x USB Type-C for Debug |
| UART | 3x UART with flow control |
| GPIO | 1x GPIO for external extention |
| Audio | 1x Headphone/Line-out;1x MIC-in |
| Power Input | 5~12V Power Input; Via 1x 2P Terminal Block Phoenix Contact |

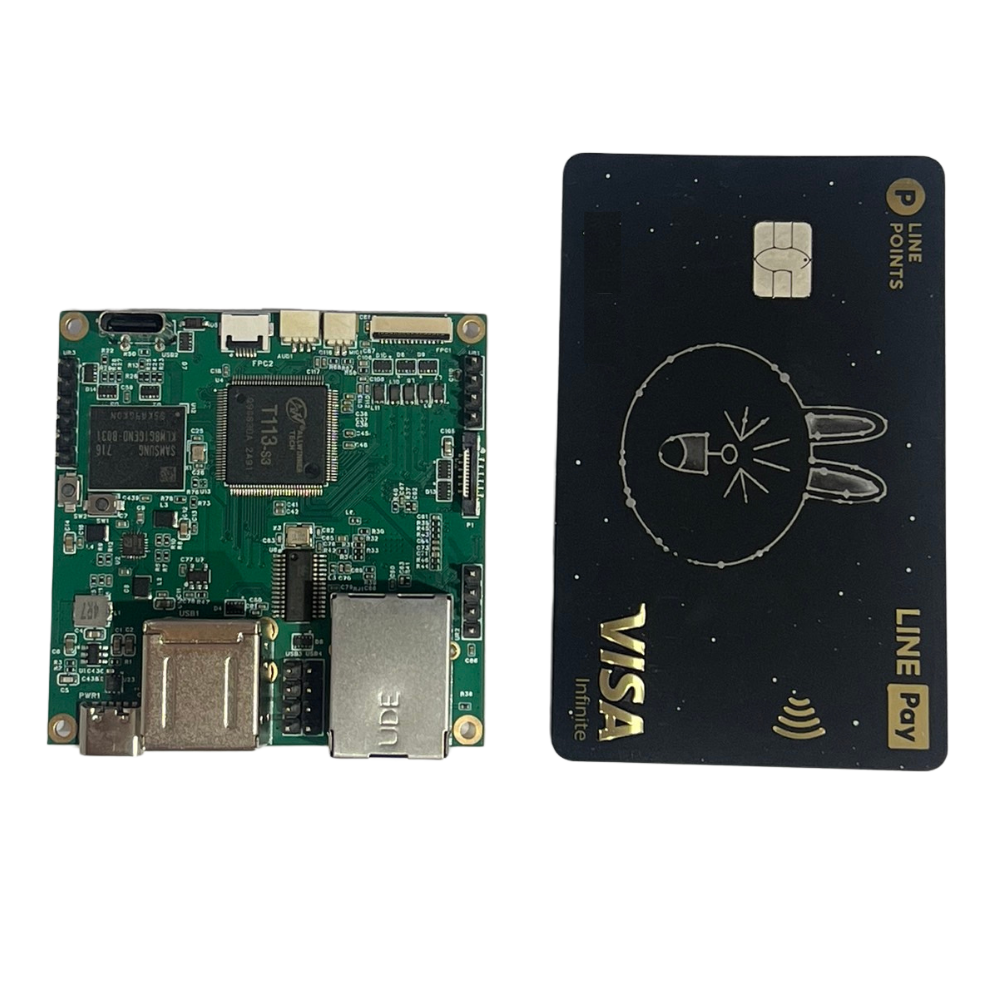

| Form Factor | 60x 60mm, Mobile-ITX |
| Operating Temperature | -10°C ~ 70°C |
| Operating System | Linux with LVGL, Qt, GTK+ support |
