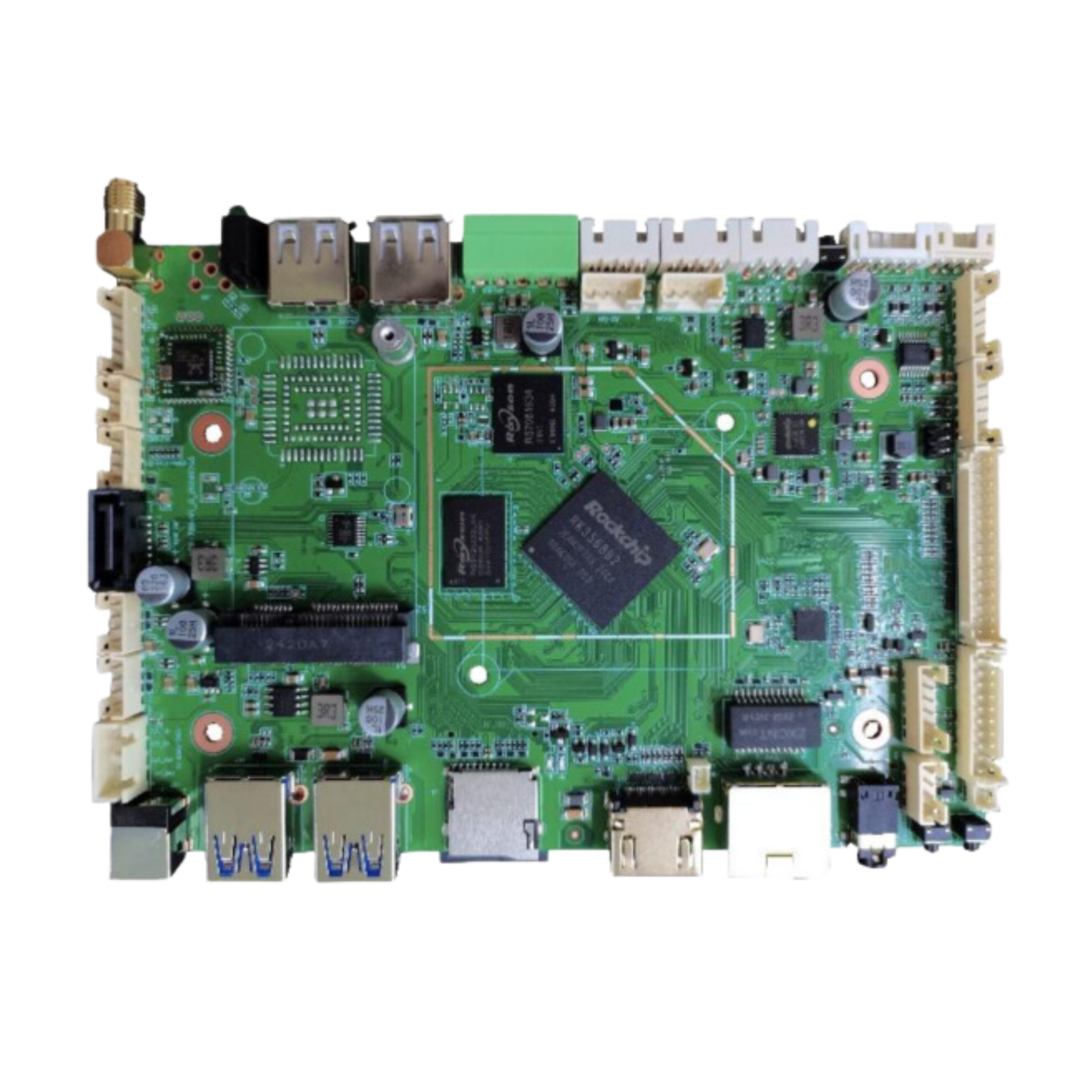

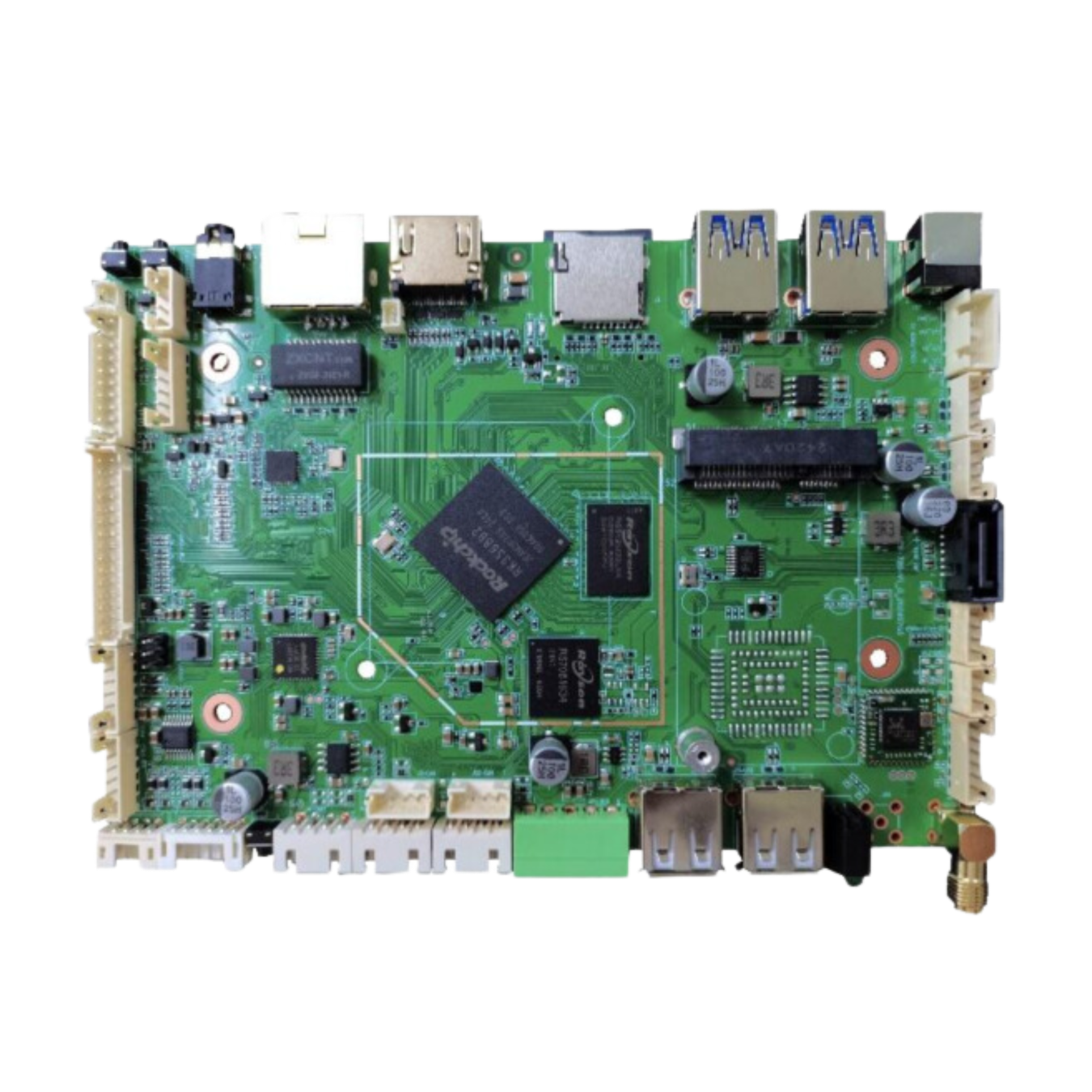

MTB-720 is a cost-effective Industrial IoT (IIoT) solution designed to meet diverse industrial applications with stable performance and flexible scalability. Powered by the Rockchip RK3568 quad-core Cortex-A55 processor, with 2GB (optional 4GB) DDR3 memory and up to 64GB of eMMC storage, it handles equipment monitoring, data processing, and automation with ease. Equipped with single Gigabit Ethernet, WiFi, Bluetooth 4.2, and 4G module support, MTB-720 delivers stable, high-speed connectivity for manufacturing, logistics, and smart building applications. Its variety of I/O interfaces, including 6 USB ports, 2 RS232, 2 RS485, and 8 GPIOs, allows seamless integration into a wide range of automation systems, adapting to various equipment needs. MTB-720 serves as an ideal platform for smart industrial applications, enabling companies to achieve industrial upgrades cost-effectively, enhancing their competitive edge.
| Processor | Rockchip RK3568 ARM Quad-Core Cortex-A55 SoC Processor up to 2.0GHz |
| RAM | DDR3, 2GB onboard, up to 4GB |
| Storage | eMMC onboard 16G, expandable up to 32/64GB |
| Display | 1x HDMI, 1xeDP, 1x MIPI-DSI, 1x Dual 8-bit LVDS |
| Protection | 1x CPU watchdog, time interval 0~128 seconds; support anti-bricking |
| Wi-Fi+BT | Single Band Wi-Fi +BT 4.2 (1T1R) |
| LAN | 10/100/1000Mbps, 1x RJ45 Connector with LED indicator |
| USB Port | 1x USB 3.0 Type A for OTG, 1x USB 3.0 Type A (Host) 2x USB 2.0 Type A (HOST), 2x USB 2.0 Pin Header |
| Audio | 1x 5W/8Ω speaker out (Left & right channel) w/ 4P PH 2.0 socket;
1x Line-out + MIC-in w/ 3.5mm headphone Jack;
1x Line-out + MIC-in w/ 4P PH 2.0 socket (onboard); 1x reserved MIC onboard w/ 2P PH 2.0 socket |
| UART | 2x RS232, 2x RS485, 1x TTL debug serial port (3.3V/5V/12V power supply) |
| GPIO | 8x GPIO, 4CH are multiplexed w/ SPI, 2CH are multiplexed with I2C |
| Slot | 1x SIM Card slot (Top side); 1x Standard TF Card slot (on the rear) |
| Indicator | 1x dual-color LED indicator (Red-green light) |
| Expansion | 1x MiniPCIe socket/LLC package for 4G universal module; 1x SIM Card Slot |
| Others | 1x Reset Button, 1x Recovery Button, 1x Power ON/OFF Button |
| Power Input | 1x 12V DC Power Input |
| Dimension | 146x102mm |
| Operating Temperature | 0°C ~ 60°C ( 0% to 90% RH, non-condensing) |
| Operating System | Android 11/ Linux |
