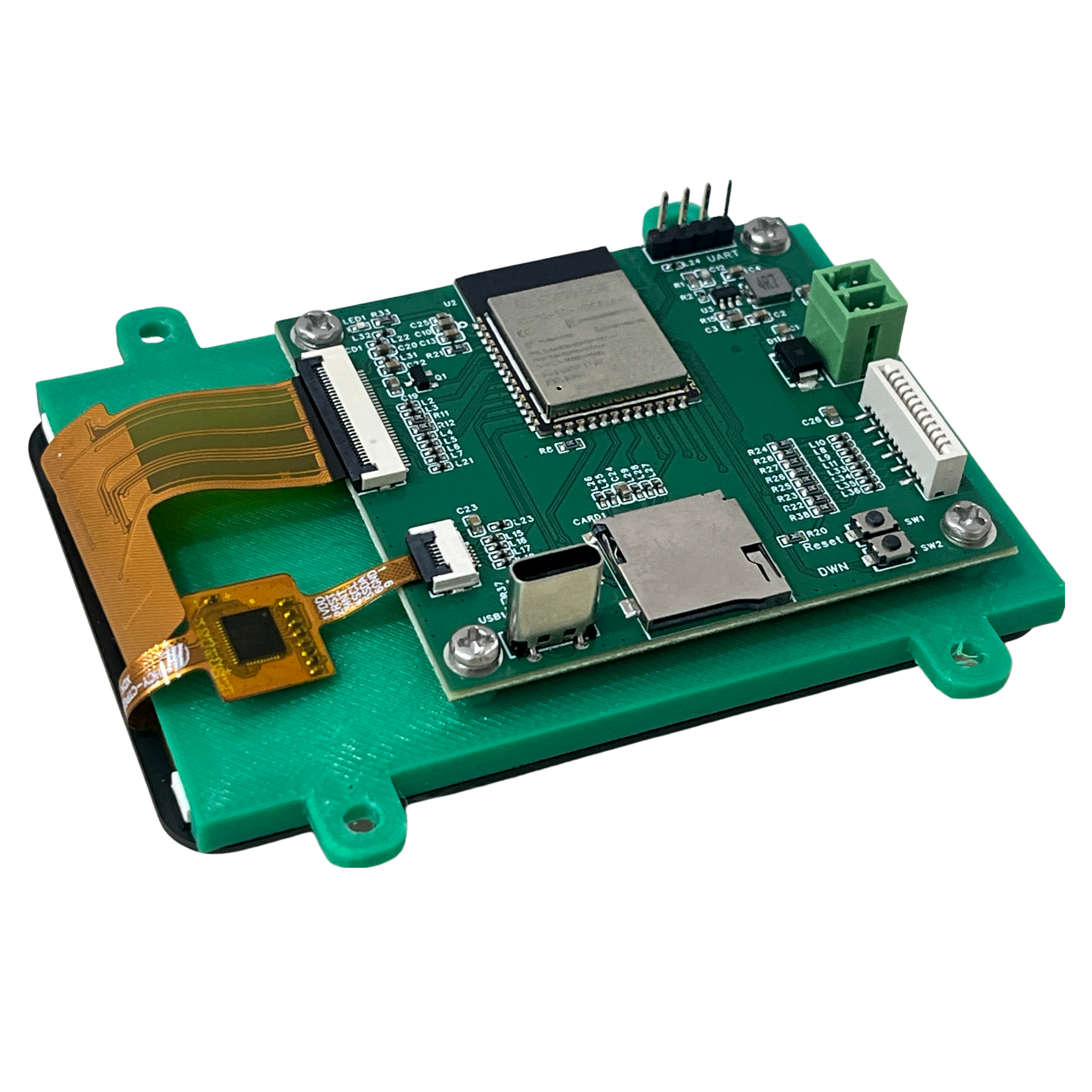

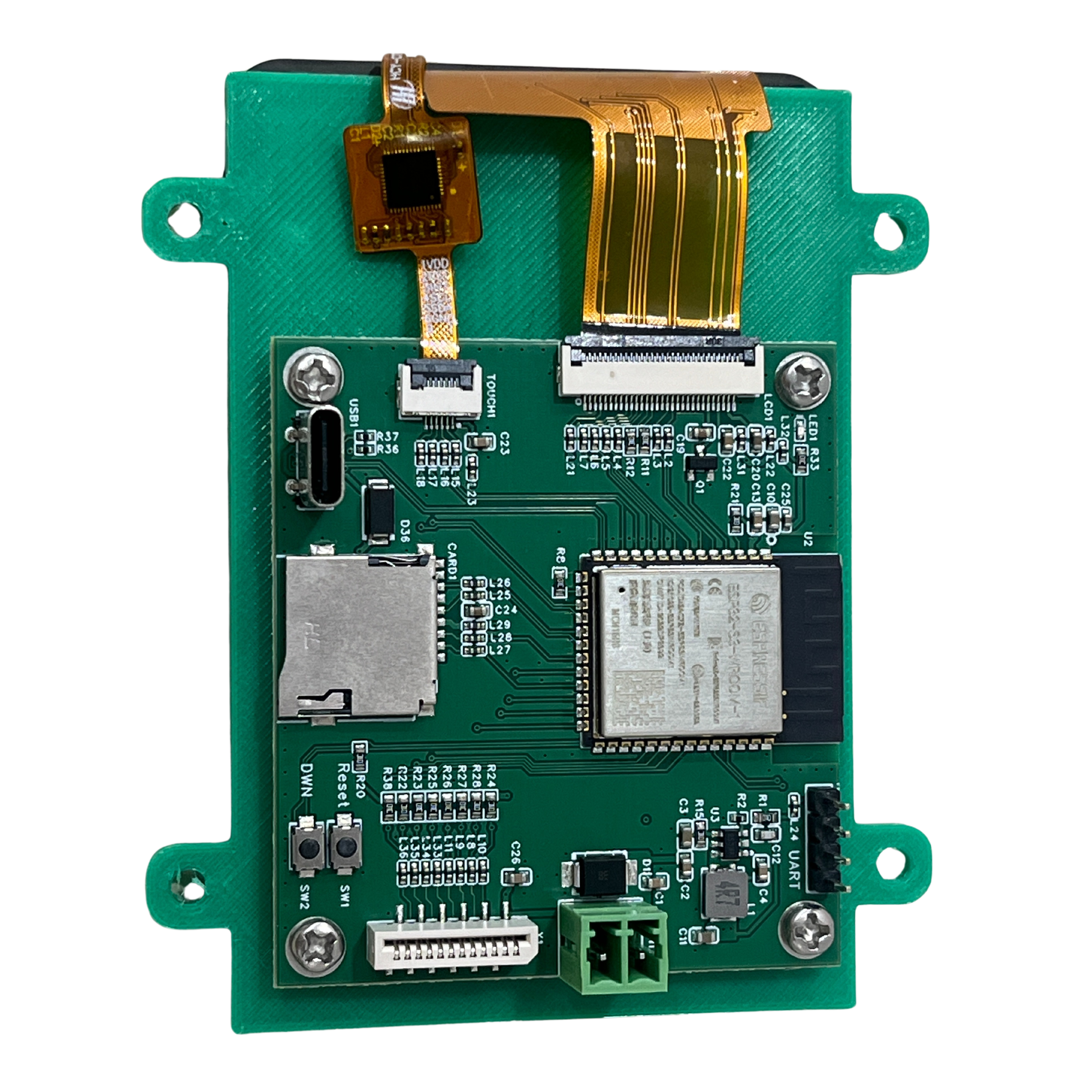

PK200-ES3
3.5" Open Frame Touch Panel kit
- Dual-Core Xtensa® 32-bit LX7 Microprocessor, up to 240MHz
- Consists with 8MB PSRAM and 16MB NOR Flash
- Built-in 802.11b/g/n Wi-Fi and Bluetooth 5.0 for connectivity
- 1x 3.5" Panel, 320x480 pixel with PCAP Touch Screen function
- Rich IO: 1x Type C for debug, 1x UART, 1x Micro SD slot, 1x 12-pin FFC socket
- Operating system: FreeRTOS, develops with LVGL Library for friendly UI/UX Design
- The compact 3.5" panel kit is easy to affix on limited space for IoT application
- operating in 0°C ~ 50°C and power by a 5~12V Power Input, 1x 2P Terminal Block Phoenix Contact
Product Overview

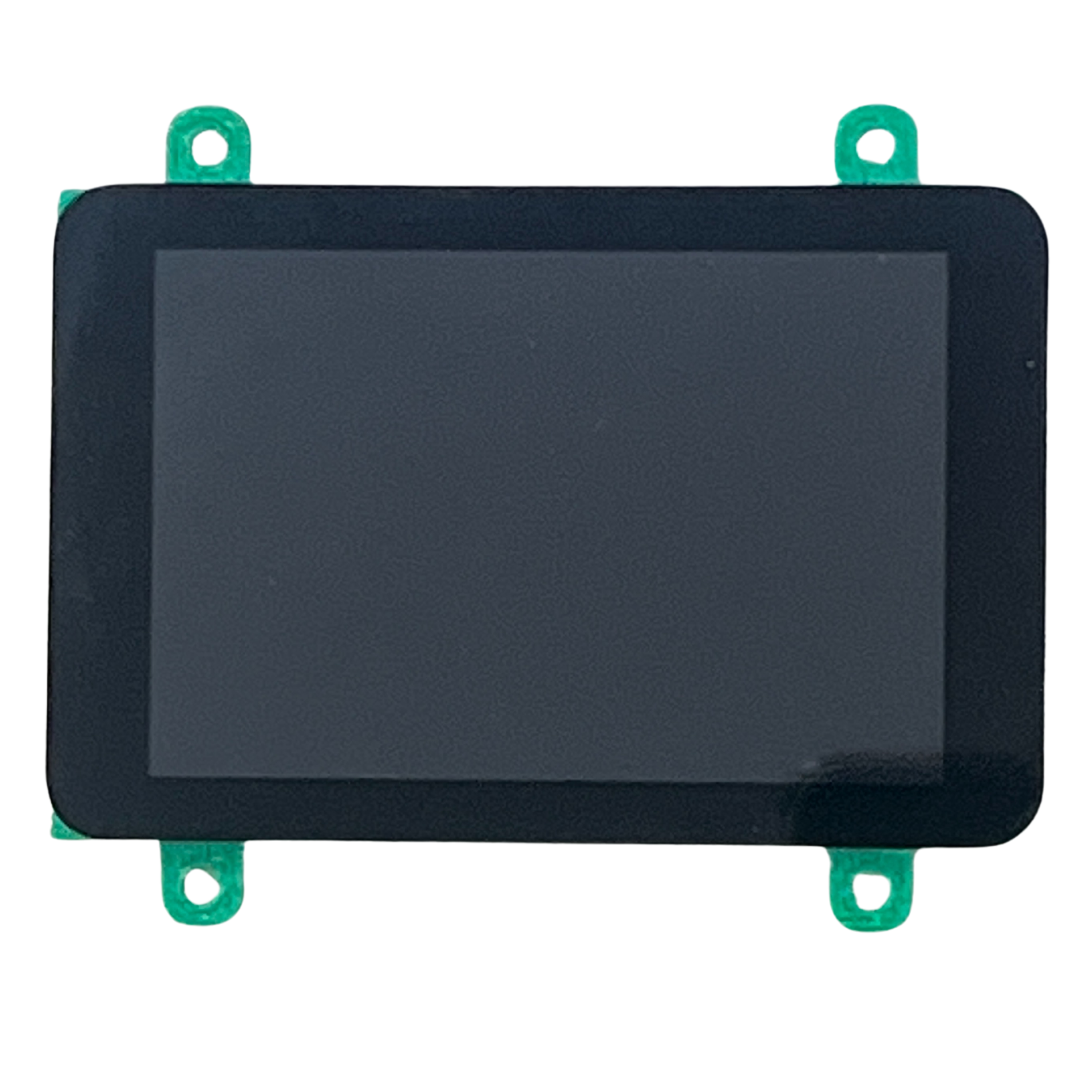

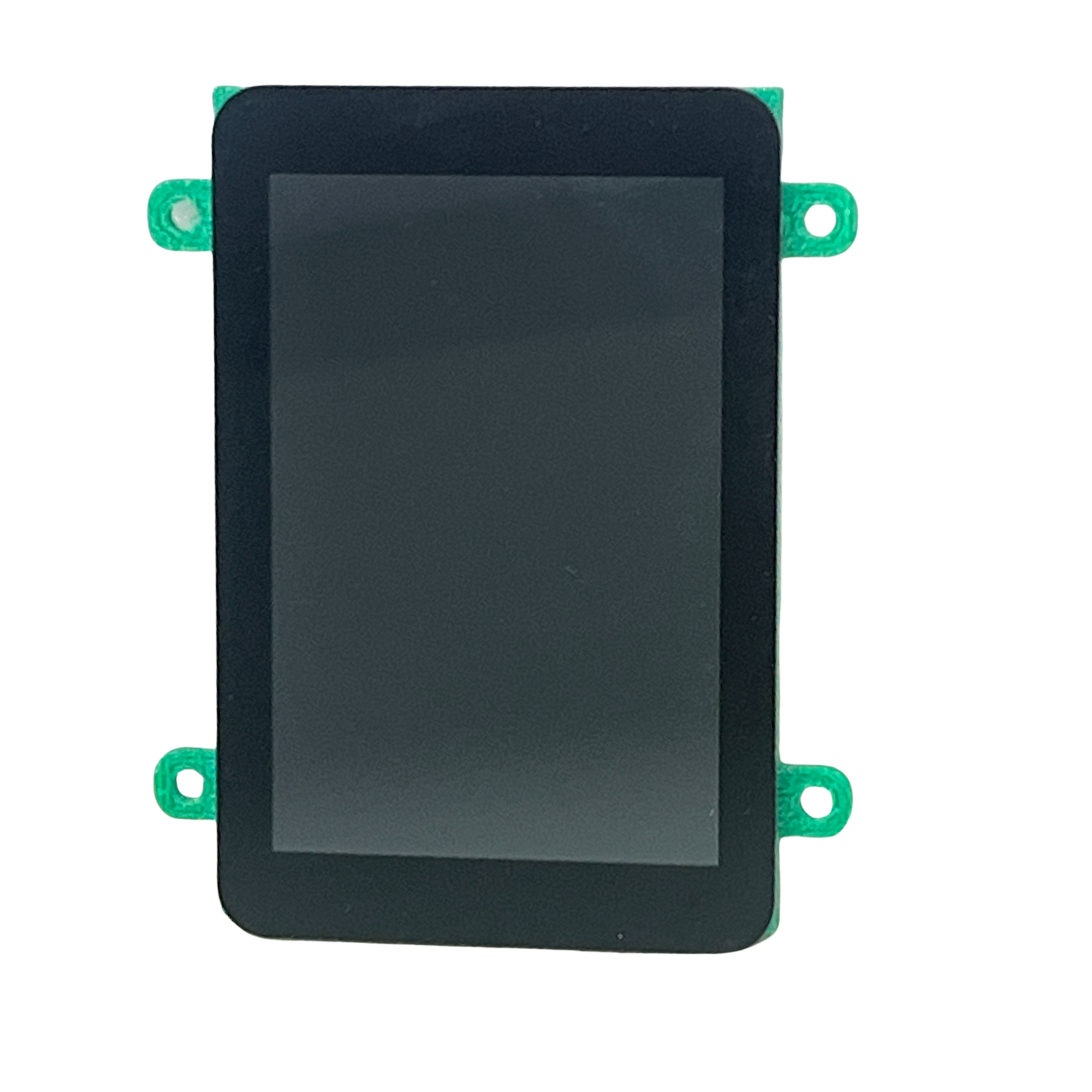

PK200-ES3 is a 3.5inch Open Frame Panel kit powered by the ESP32-S3 with a dual-core microprocessor running up to 240MHz, offers a powerful solution for embedded and IoT applications. The kit features a 3.5" TFT LCD with 320 x 480 resolution, 300 cd/m² brightness and with touch screen function, ensuring a interactive ans responsive user experience with the clear and vibrant display. PK200-ES3 supports multiple interfaces, including Type-C for debugging, and various GPIO/I2C/UART/PWM functions. With its open frame kit design, this panel can be easily positioned in either landscape or portrait orientation, allowing it to adapt seamlessly to the customer's spatial design requirements. This panel kit is ideal for smart home systems, industrial controls, and portable monitoring devices, delivering reliable performance even in demanding environments.
Specification
| Processor | Xtensa® Dual-core 32-bit LX7 Microprocessor, 240MHz |
| RAM | 8MB PSRAM |
| Storage | 16MB NOR Flash |
| Connectivity | 802.11b/g/n + Bluetooth 5.0 |
| Display | 3.5" TFT LCD, 320 x 480 pixels |
| Touch | Support PCAP Touch Screen via I2C |
| Brightness | 300 cd/m2 |
| USB Port | 1x Type C Debug port |
| UART Port | 1, 4-pin Header |
| SD Card Socket | 1 x Micro SD Slot |
| Others | 1 x 12-Pin FFC Socket, supports 8x GPIO/I2C/UART/PWM and 5~12V Power In & Out RTC Battery support via PH 1.25mm |
| Power Input | 5~12V Power Input, via 1x 2P Terminal Block Phoenix Contact |
| Mechanism Dimension | 92.44 x 77mm ( w/ Frame); 60x 54.5mm (Board only) |
| Operating Temperature | 0°C ~ 50°C |
| Operating System | FreeRTOS with LVGL |
