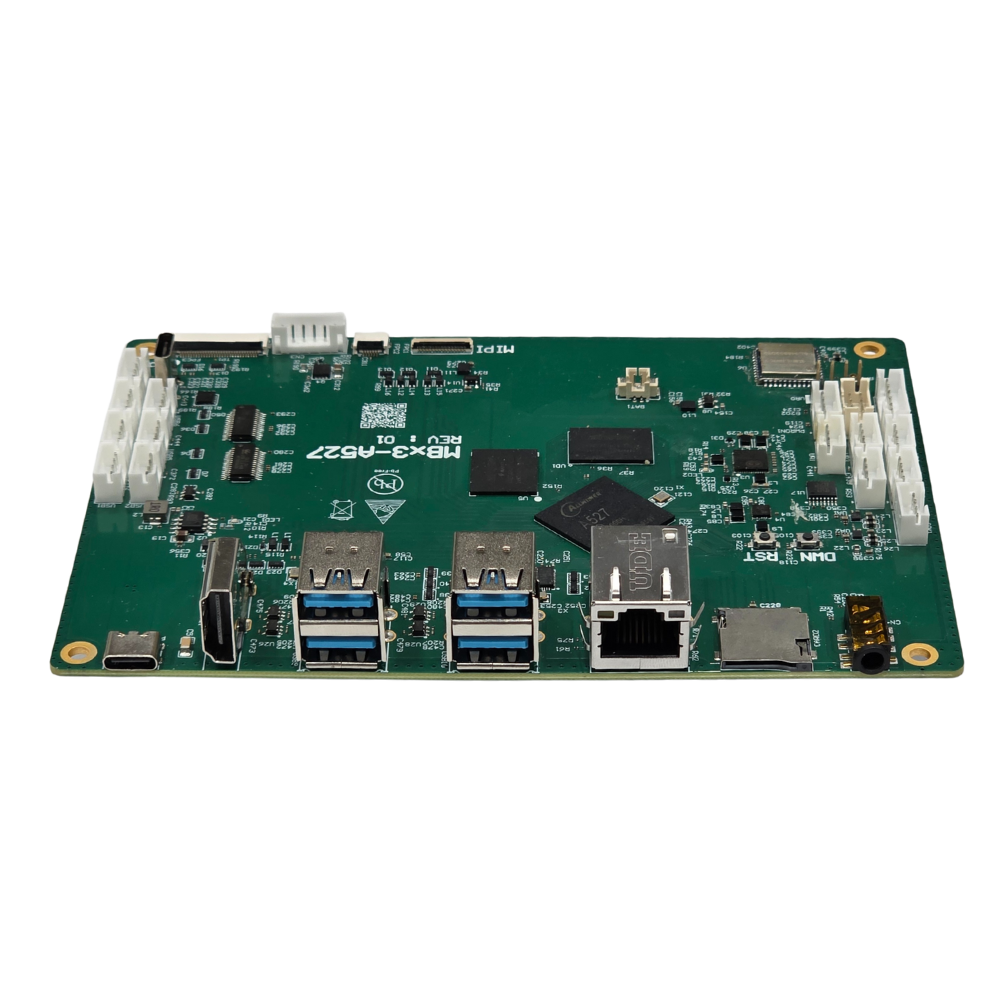

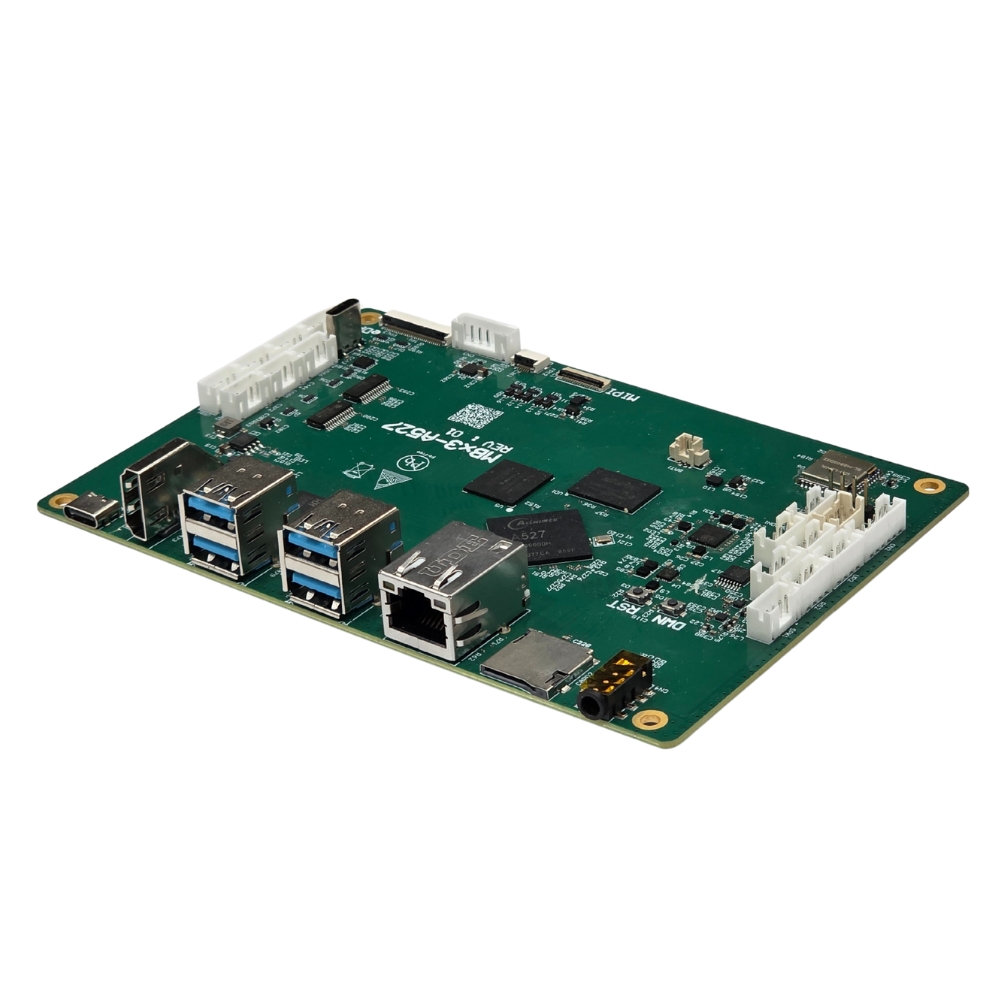

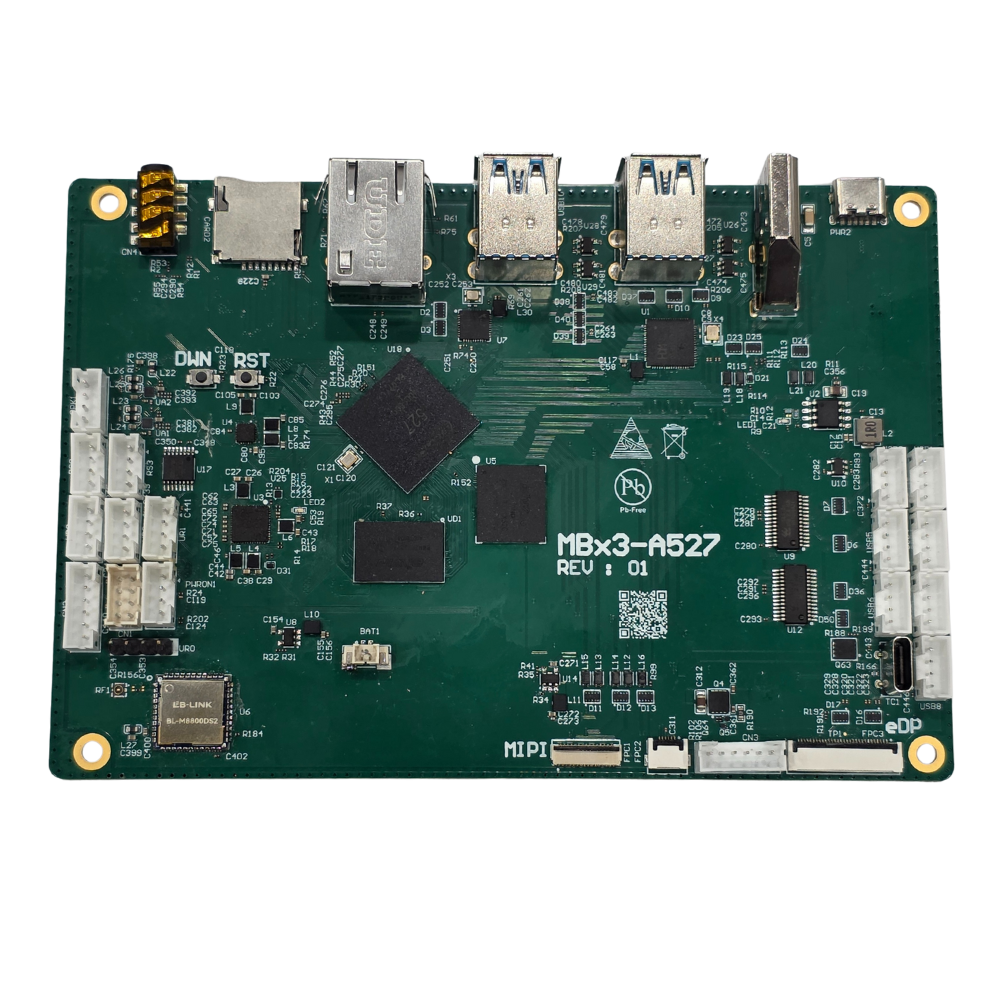

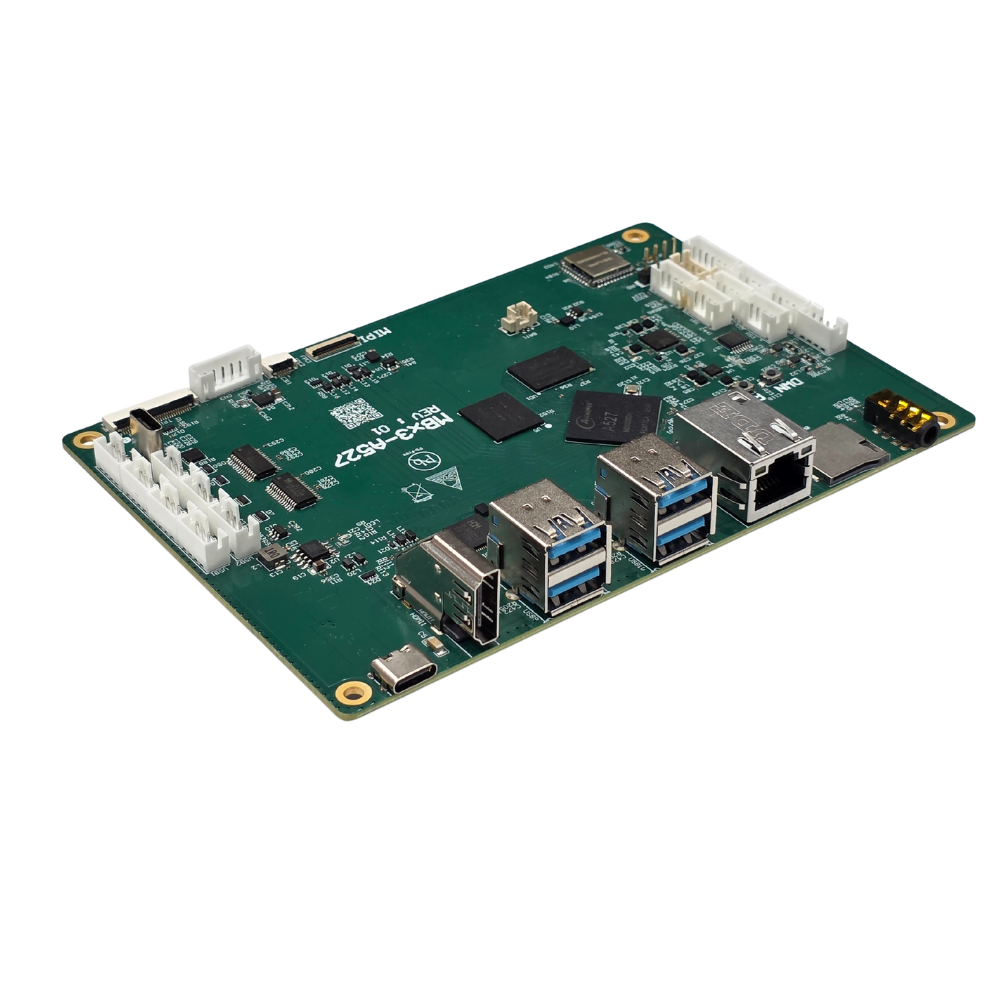

MBx3-A527
Purpose-Built Embedded Board with Octa Core processor, Balancing Performance and Cost
- High-performance Octa-Core Cortex-A55 SoC processor, up to 2.0GHz
- Built-in Integrated ARM G57 MC01 GPU for High performance multimedia processing with low power consumption
- 4GB LPDDR4 Memory and 32GB eMMC onboard design
- Comprehensive connectivity: 1x Gigabit Ethernet and Wi-Fi6 +BT5.4 for option
- Flexible Media output for selection: HDMI, eDP, MIPI-DSI, support dual-screen output simultaneously
- Rich IO for usage: 11 x USB, 5x Serial Port, 1x 1W stereo Amp 4Ω, 1x 3.5mm Audio Jack
- Support USB Type-C PD, 9V/12V/15V
- Support Android 15 and -Debian & Ubuntu
Product Overview
MBx3-A527 is a 3.5 inch cost-effective and streamlined embedded board powered by an Octa-core ARM Cortex-A55 processor up to 2.0GHz, equipped with 4GB LPDDR4 memory and 32GB eMMC storage. It supports Android 15 and Linux, delivering high efficiency with low power consumption to meet diverse embedded application needs. The board features 11 USB ports (4x Type-A + 7x headers) and 5 Serial Ports, enabling seamless integration with peripherals such as barcode scanners, receipt printers, sensors, and control modules. With Type-C PD 9–15V power input and streamlined display outputs including MIPI DSI, HDMI, and eDP, it is well-suited for single-screen or basic dual-display solutions. MBx3-A527 is purpose-built for budget-friendly industrial control, HMI panels, retail self-service terminals, and interactive information kiosks, where simplified display requirements and easy peripheral integration are essential. It offers reliable performance, simplified system design, and outstanding cost-effectiveness, making it an ideal choice for lightweight intelligent devices.
Specification
| Processor | 8x ARM Cortex-A55 up to 2.0GHz |
| RAM | Onboard LPDDR4 4GB |
| Storage | 32GB eMMC (Option to 64GB/128GB) |
| Graphics | For internal LCD: MIPI-DSI up to 1920x1080; eDP up to 1920x 1080; For external Display: HDMI up to 1920x 1080 |
| Display | MIPI DSI, eDP, HDMI, Option 3 to 2 |
| Touch | Support via I2C signal |
| WLAN | WiFi 6+ BT 5.4 for Option |
| Display IO Port | 1x HDMI |
| Ethernet | 1x RJ45 w/ LEDs for GbE LAN |
| USB Port | 4x USB 3.0 Type-A |
| Audio Port | 1x 3.5mm Audio Jack |
| Power Input | 1x USB Type-C PD, 9V/12V/15V (>20W) |
| Expansion | 1x TF Card Slot |
| RTC | Support via 1x PH 1.25mm |
| Internal I/O (Onboard) | 7x USB 2.0 (PH 2.0mm) 2x RS232 (PH 2.0mm), 3x TTL UART (PH 2.0mm, 4P) 1x MIPI DSI, 1x eDP 1x 1W speaker stereo Amp 4Ω 1x 6-Pin Connector (PH 2.0mm)/1 x 6-Pin FFC Connector, P=0.5mm for Touch |
| Other | 1x Type-C for ADB; 1x Power Key/LED conn. ( PH 2.0mm, 4P) ; 1x Reset KEY/GPIO ( PH 2.0mm, 4P); 1x SPI Conn. (PH2.0mm, 6P); 1x RST Button, 1x DWN Button |
| Dimension | 148.2x 101.6mm |
| Operating Temperature | -10°C ~ 70°C ( 0% to 90% RH, non-condensing) |
| Storage Temperature | -40°C ~ 85°C |
| Operating System | Android 15, Linux-Debian & Ubuntu |
