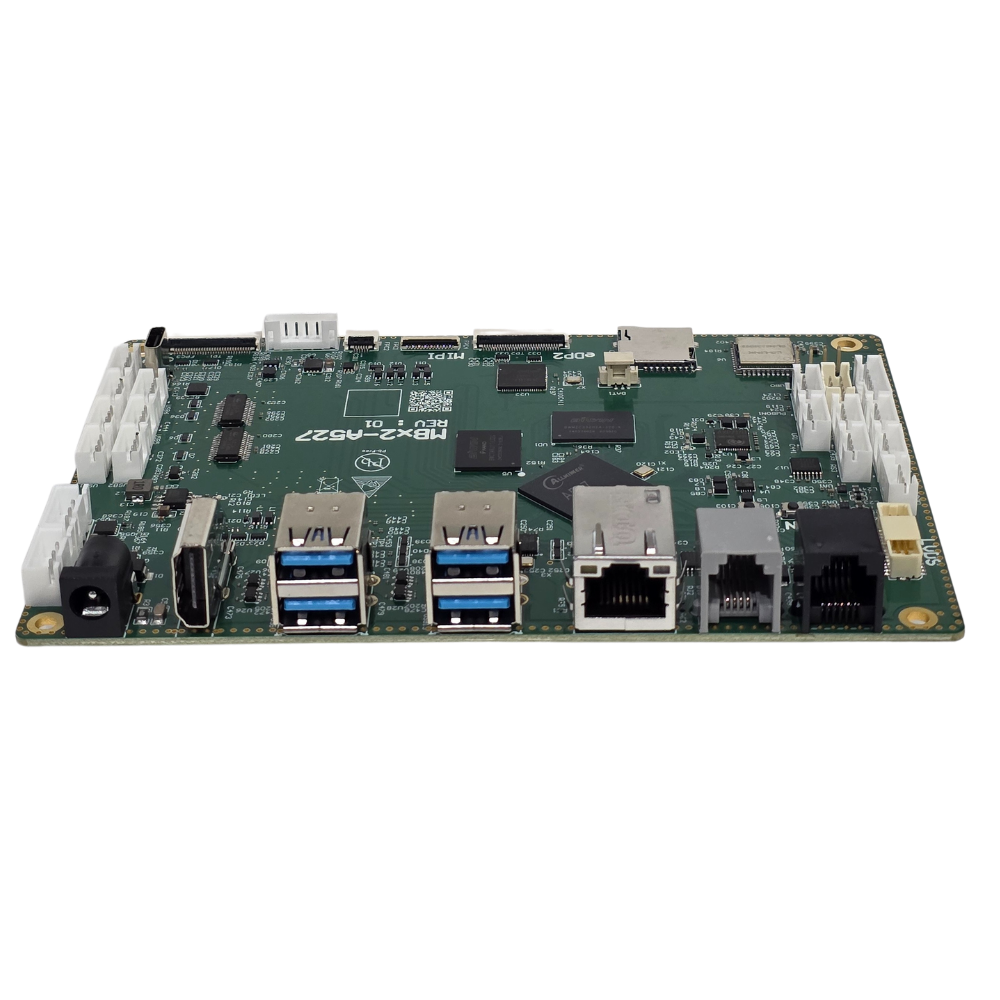

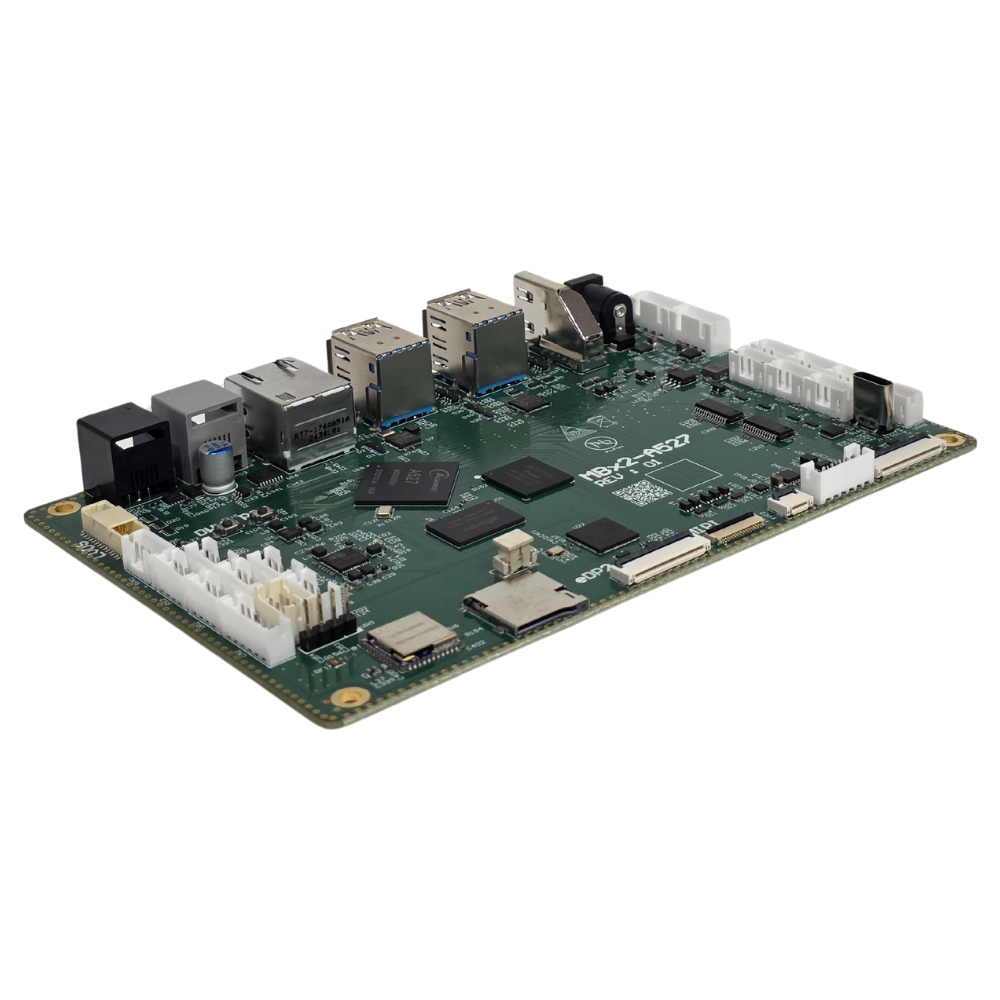

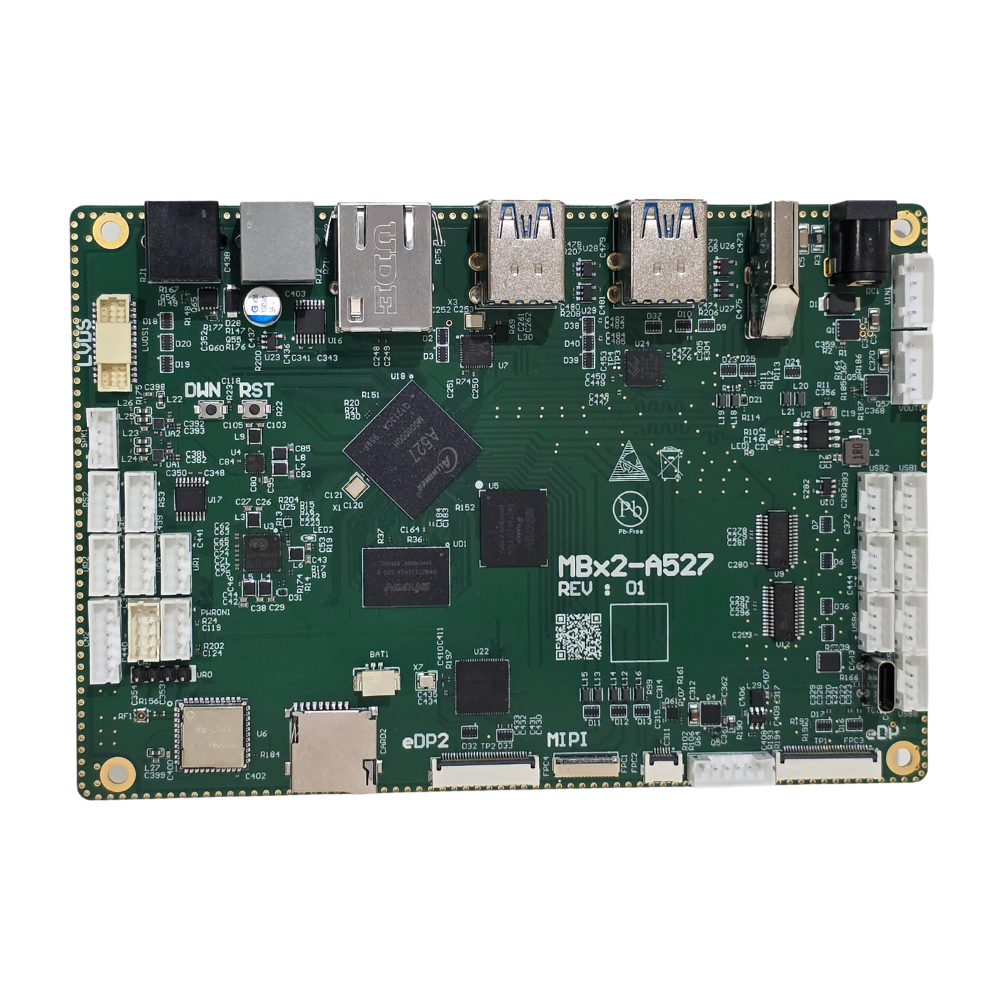

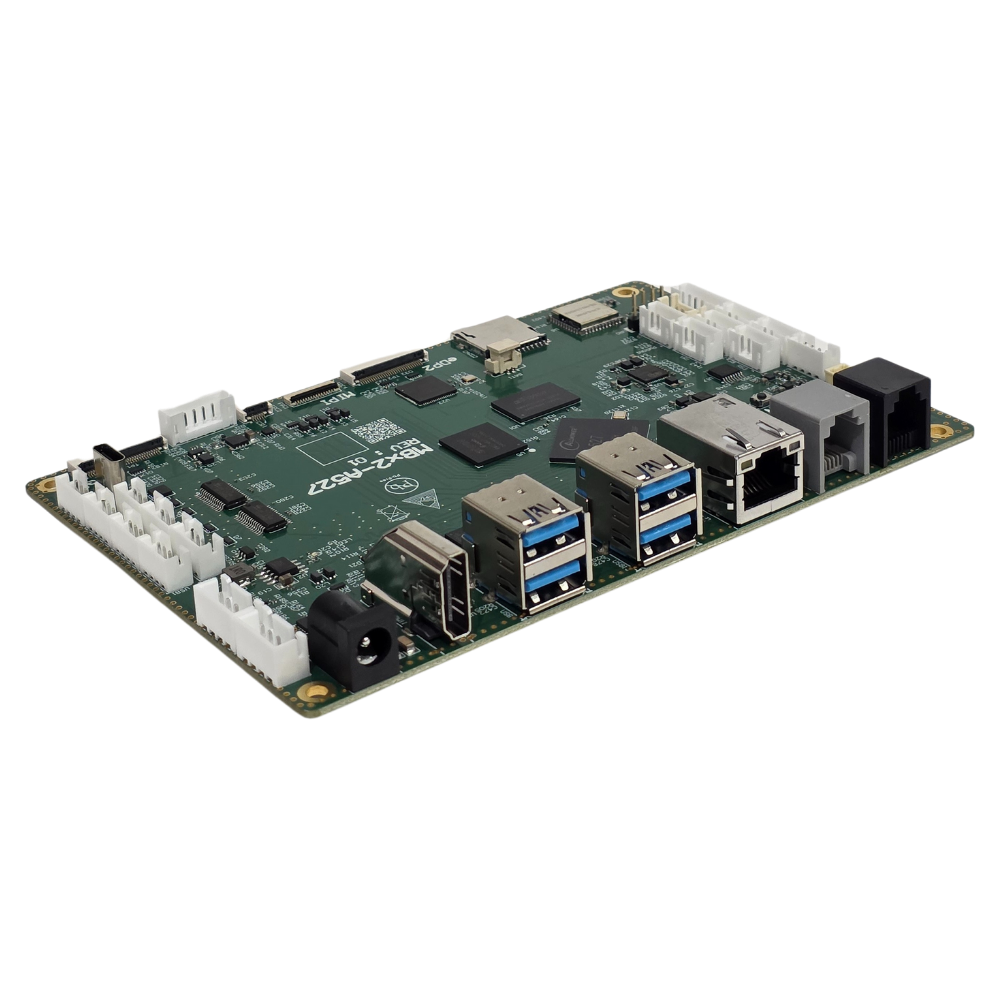

MBx2-A527
Industrial-Grade Embedded Board with I/O Versatility
- High-performance Octa-Core Cortex-A55 SoC processor, up to 2.0GHz
- Built-in Integrated ARM G57 MC01 GPU for High performance multimedia processing with low power consumption
- 4GB LPDDR4 Memory and 32GB eMMC onboard design
- Comprehensive connectivity: 1x Gigabit Ethernet and Wi-Fi6 +BT5.4 for option
- Flexible Media output for selection: HDMI, 2xeDP, LVDS, MIPI-DSI, support dual-screen output simultaneously
- Rich IO: 11 x USB, 6x Serial Port, 1x 1W stereo Amp 4Ω
- Support Android 15 and -Debian & Ubuntu
Product Overview
MBx2-A527 is a compact, high-performance embedded board tailored for automation control, smart retail, and industrial terminals. Built on an Octa-core ARM Cortex-A55 processor and equipped with a G57 GPU, it provides responsive system performance and efficient multimedia handling—ideal for interface-rich industrial applications. This board integrates 11x USB ports and 6x serial ports, enabling seamless connection with a wide range of peripherals such as barcode readers, thermal printers, industrial sensors, and control panels. With 1x Gigabit Ethernet, optional Wi-Fi 6 + BT 5.4, and support for Android 15, Debian, and Ubuntu, MBx2-A527 delivers deployment flexibility across both wired and wireless environments. Its advanced multimedia capabilities support dual eDP, MIPI-DSI, LVDS, and HDMI outputs—making it a great fit for dual-screen HMI panels, real-time dashboards, or operator terminals that require graphical interfaces and responsive touch interaction. MBx2-A527’s compact-size design and 12V input make it ideal for space-constrained deployments such as factory HMI panels, self-service kiosks, retail data terminals, and interactive info points—where rich I/O and dual-display support are key.
Specification
| Processor | 8x ARM Cortex-A55 up to 2.0GHz |
| RAM | Onboard LPDDR4 4GB |
| Storage | 32GB eMMC (Option to 64GB/128GB) |
| Graphics | For internal LCD: MIPI-DSI up to 1920x1080; LVDS up to 1366x768;eDP up to 1920x 1080; For external Display: HDMI up to 1920x 1080 |
| Display | MIPI DSI, eDP (eDP1/eDP2), LVDS, HDMI, Option 5 to 2 |
| Touch | Support via I2C signal |
| WLAN | WiFi 6+ BT 5.4 for Option |
| Display IO Port | 1x HDMI |
| Ethernet | 1x RJ45 w/ LEDs for GbE LAN |
| USB Port | 4x USB 3.0 Type-A |
| COM Port | 1x RS232, DB-9 Connector |
| Expansion | 1x TF Card Slot |
| RTC | Support via 1x PH 1.25mm |
| Internal I/O (Onboard) | 7x USB 2.0 (PH 2.0mm) 2x RS232 (PH 2.0mm), 3x TTL UART (PH 2.0mm, 4P) 1x LVDS, 1x MIPI DSI, 2x eDP 1x 1W speaker stereo Amp 4Ω 1x 6-Pin Connector (PH 2.0mm)/1 x 6-Pin FFC Connector, P=0.5mm for Touch |
| Other | 1x 12V IN Conn.(PH 2.5mm, 4P); 1x 12V Out conn. (PH 2.5mm, 4P); 1x Type-C for ADB; 1x Power Key/LED conn. ( PH 2.0mm, 4P) ; 1x Reset KEY/GPIO ( PH 2.0mm, 4P); 1x SPI Conn. (PH2.0mm, 6P); 1x RST Button, 1x DWN Button |
| Dimension | 148.2x 101.6mm (in temerpory) |
| Operating Temperature | -10°C ~ 70°C ( 0% to 90% RH, non-condensing) |
| Storage Temperature | -40°C ~ 85°C |
| Operating System | Android 15, Linux-Debian & Ubuntu |
