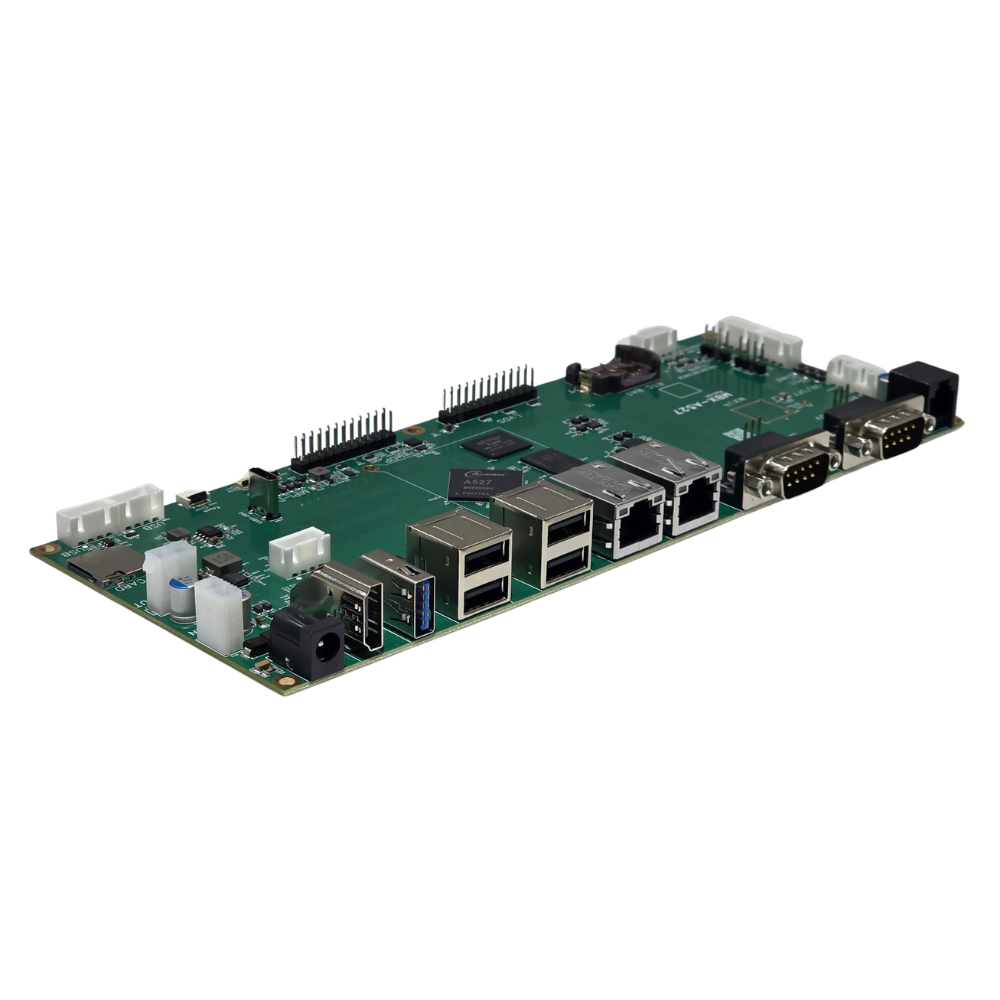

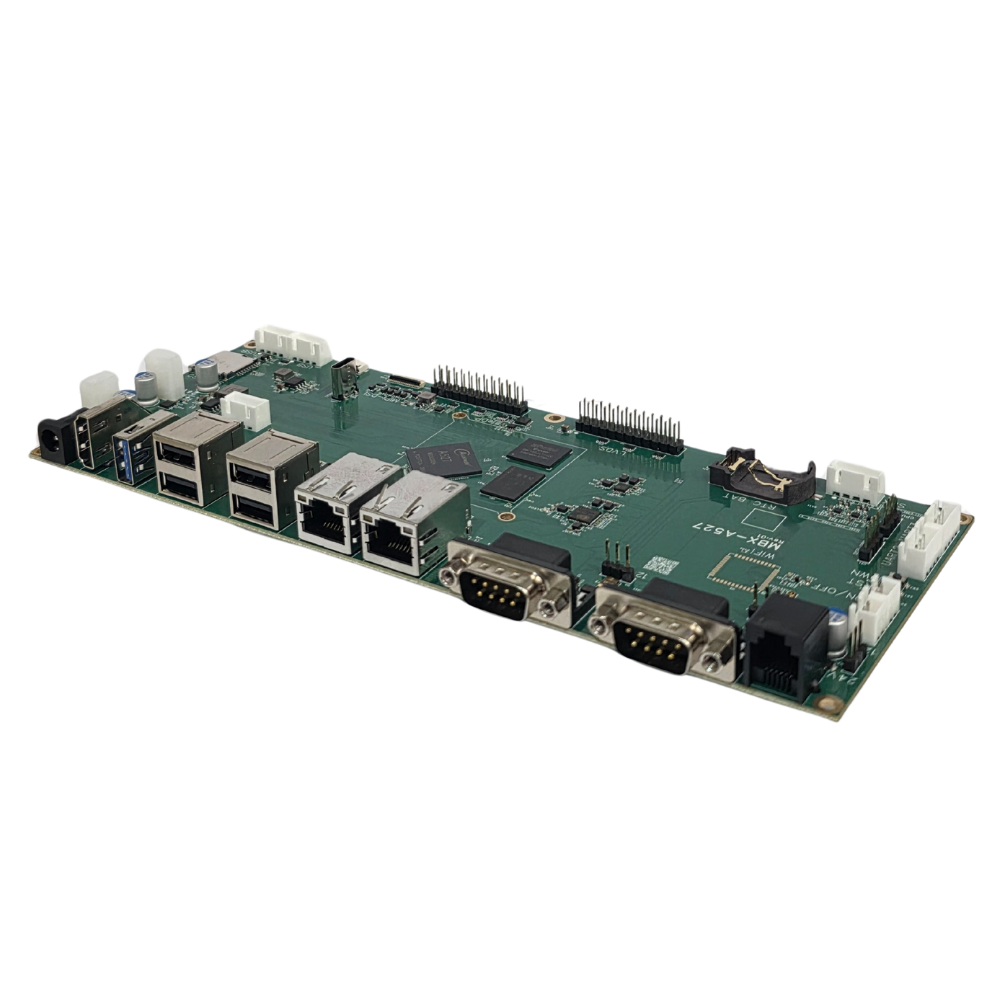

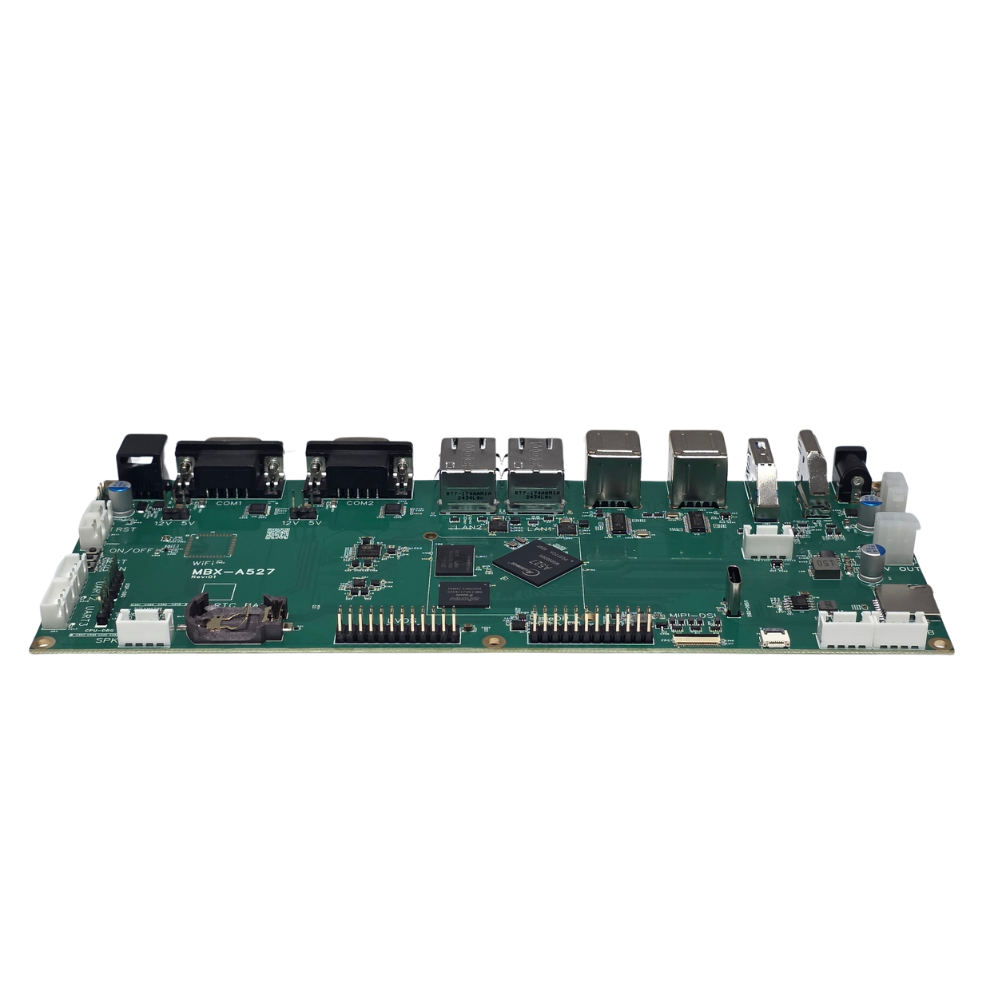

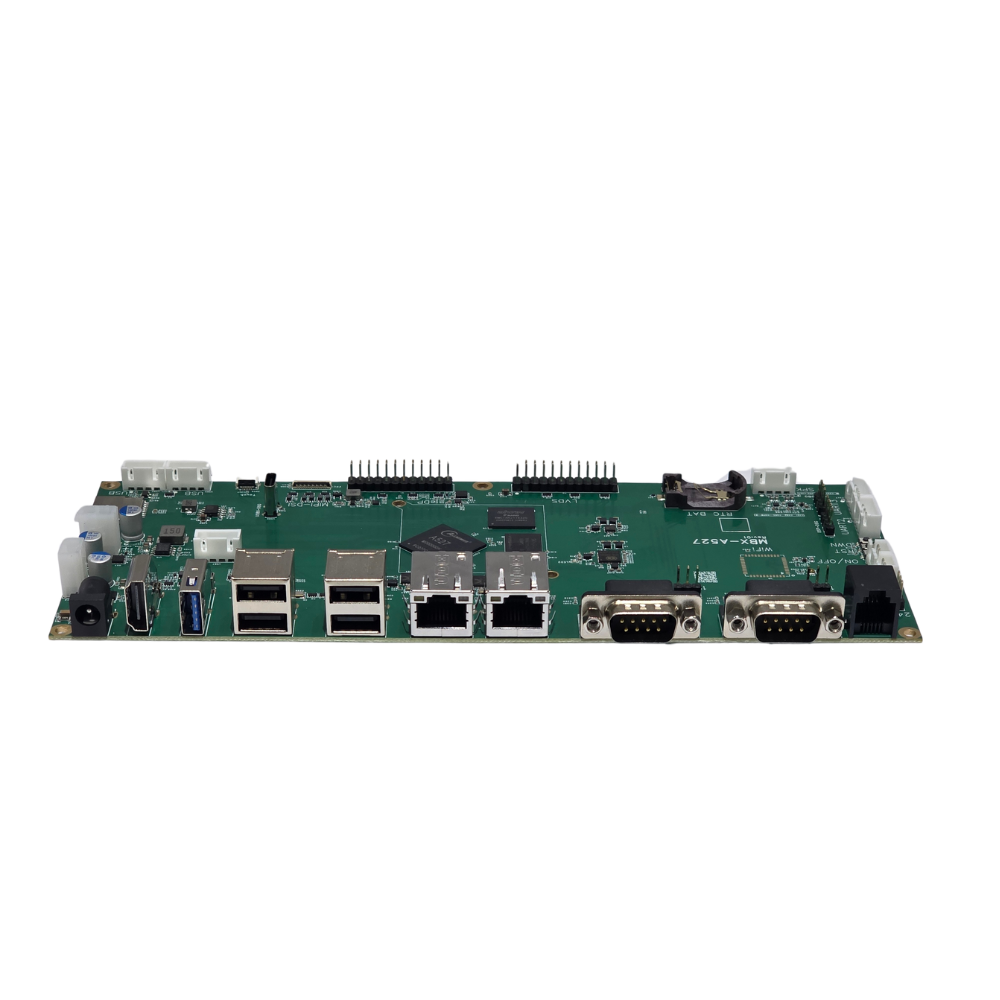

MBX-A527
POS-Optimized Embedded Board with Octa-Core High Performance processor
- High-performance Octa-Core Cortex-A55 SoC processor, up to 2.0GHz
- Built-in Integrated ARM G57 MC01 GPU for High performance multimedia processing with low power consumption
- 4GB LPDDR4 Memory and 32GB eMMC onboard design
- Comprehensive connectivity: 2x Gigabit Ethernet and Wi-Fi6 +BT5.4 for option
- Flexible Media output for selection: HDMI, eDP, LVDS, MIPI-DSIx 4 lanes, support dual-screen output simultaneously
- Rich IO: 8 x USB, 2xRS232, 2xUART, 1x 1W stereo Amp 4Ω
- Support Android 15 and -Debian & Ubuntu
Product Overview
MBX-A527 is a high-performance embedded board designed for POS (Point-of-Sale) systems and retail applications, offering exceptional processing power and connectivity. Featuring an Octa-Core ARM Cortex-A55 processor up to 2.0GHz and 4GB LPDDR4 memory, it ensures smooth and efficient operations. Equipped with dual Gigabit Ethernet, Wi-Fi6, and Bluetooth 5.4, MBX-A527 enables seamless network connectivity for modern retail environments. It supports multiple display interfaces including HDMI, MIPI-DSI, LVDS, and eDP, allowing dual-screen output—ideal for interactive kiosks, self-service terminals, and digital signage. With 8xUSB ports, 2xRS232, 2xUART interfaces, and a cash drawer port, it integrates effortlessly with peripherals such as barcode scanners, receipt printers, and payment terminals. Running Android 15, it provides a flexible software environment for retail and self-service solutions. Beyond retail, MBX-A527 is also well-suited for hospitality, vending machines, and industrial control applications, making it a versatile embedded platform.
Specification
| Processor | 8x ARM Cortex-A55 up to 2.0GHz |
| RAM | Onboard LPDDR4 4GB |
| Storage | 32GB eMMC (Option to 64GB/128GB) |
| Graphics | For internal LCD: MIPI-DSI up to 1920x1080; LVDS up to 1366x768;eDP up to 1920x 1080; For external Display: HDMI up to 1920x 1080 |
| Display | MIPI-DSIx 4 lanes, eDP, LVDS, HDMI |
| Touch | I2C with RST/INT For 10.1" LCD |
| WLAN | WiFi 6+ BT 5.4 for Option |
| Ethernet | 2x RJ45 w/ LEDs for GbE LAN |
| USB Port | 4x USB 2.0 Type-A (HS), 1x USB 3.0 Type A (SS) |
| COM Port | 2x RS232, DB9 connector with CTS/RTS, PIN9 supports 5V/12V (selectable by jumper) |
| Cash Drawer | 1x RJ12 6P/6C, 12V/24V selectable by jumper |
| Expansion | 1x Micro SD slot, support SDXC up to 256GB |
| RTC | Support via a Battery Socket (CR2032) |
| Internal I/O (Onboard) | 3x USB 2.0 HS via 3x4P WAFER 2x 4P wafer w/ 2.5mm PH, 3.3V level w/ 5V output 1x 1W stereo Amp 4Ω |
| Other | 1x 24V IN Conn., 1x 24V OUTPUT Conn., 1x Type-C for ADB, 1x RST Button, 1x DWN Button |
| Dimension | 225x 90mm (in temerpory) |
| Operating Temperature | -10°C ~ 70°C ( 0% to 90% RH, non-condensing) |
| Storage Temperature | -40°C ~ 85°C |
| Operating System | Android 15, Linux-Debian & Ubuntu |
